Fiber Optic - Connectors

Connectors are designed specifically for either singlemode 9/125Ám fibre or multimode 62.5/125Ám or 50/125Ám fibres. They are usually available in two versions, 900Ám (pigtails) and 2 or 3mm cables (patchcords).

The optical fibre connector is precision made and manufactured to demanding specifications. It is designed to support the fibre and ensure that when inserted within an adapter the fibre is accurately aligned with its mating connector. With singlemode fibre the alignment of the two fibres is critical to ensure low light loss between the mating fibres.

Applications: Fibre distribution, LAN and WAN, FTTx applications, CATV, Testing instruments, Telecommunications systems

Standards: ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568A

Each connector is individually packed.



Singlemode & Multimode

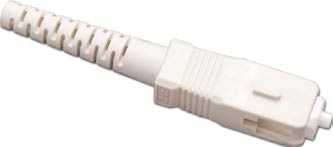

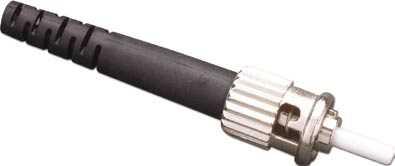

ST, SC, SC/APC, LC, FC, FC/APC, MU, E2000, MTRJ

 Download gemeral pdf   or    ST      SC      MTRJ      LC      FC/PC      E2000
